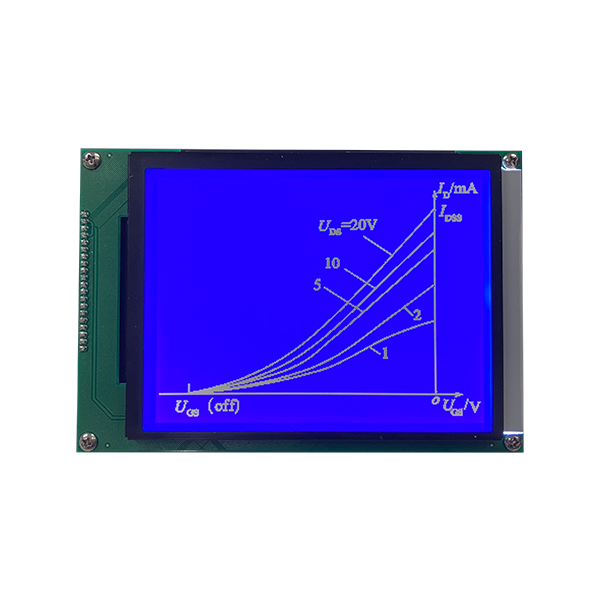

Model：CNK320240-22199A1
Features：1）high stability   2）Low power consumption   3）Wide temperature
Specifications：
1、Resolution: 320 x 240
2、Active Area: 115.17(W)×88.37(H) mm
3、Outline Dimension: 160(W )×109(H)×13.5(T)mm
4、Display Mode: STN,Negative (Blue), Transmissive
5、LCD 0perating Voltage：5V
6、0perating Temperature：-20°C~70°C
7、Storage Temperature: -30°C~80°C
8、Viewing Direction: 6: 00
9、Connector: 8080
10、IC: UCi8835C
11、Backlight: LED/White
12、RoHS Compliant：Yes

Product Application：Industrial control equipment, medical equipment, power instruments, etc.

Model：CNK320240-22199A1

Features：1）high stability   2）Low power consumption   3）Wide temperature

Specifications：

1、Resolution: 320 x 240

2、Active Area: 115.17(W)×88.37(H) mm

3、Outline Dimension: 160(W )×109(H)×13.5(T)mm

4、Display Mode: STN,Negative (Blue), Transmissive

5、LCD 0perating Voltage：5V

6、0perating Temperature：-20°C~70°C

7、Storage Temperature: -30°C~80°C

8、Viewing Direction: 6: 00

9、Connector: 8080

10、IC: UCi8835C

11、Backlight: LED/White

12、RoHS Compliant：Yes

Product Application：Industrial control equipment, medical equipment, power instruments, etc.
