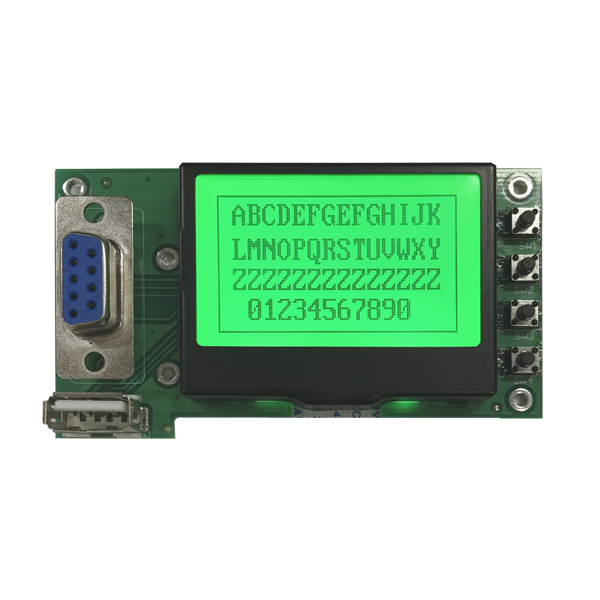

Model：CNK12864-23548A2
Features：1）high stability   2）Low power consumption   3）Wide temperature
Specifications：
1、Resolution：128  x 64
2、Active Area: 38.38mm (H)  x 23.02 mm (V)
3、Outline Dimension: 82.4 mm (H)  x 43.8 mm (V)
4、Display Mode:  STN Y-G, Positive, Transmissive
5、LCD 0perating Voltage：3.3V
6、0perating Temperature：-30°C~80°C
7、Storage Temperature: -30°C~80°C
8、Viewing Direction: 6: 00
9、Connector: SPI
10、IC: ST7567-G4D
11、Backlight: Green
12、RoHS COMPLIANT：Yes

Product Application：For Industrial control fields such as driving recorders, inverters, and frequency converters etc.
