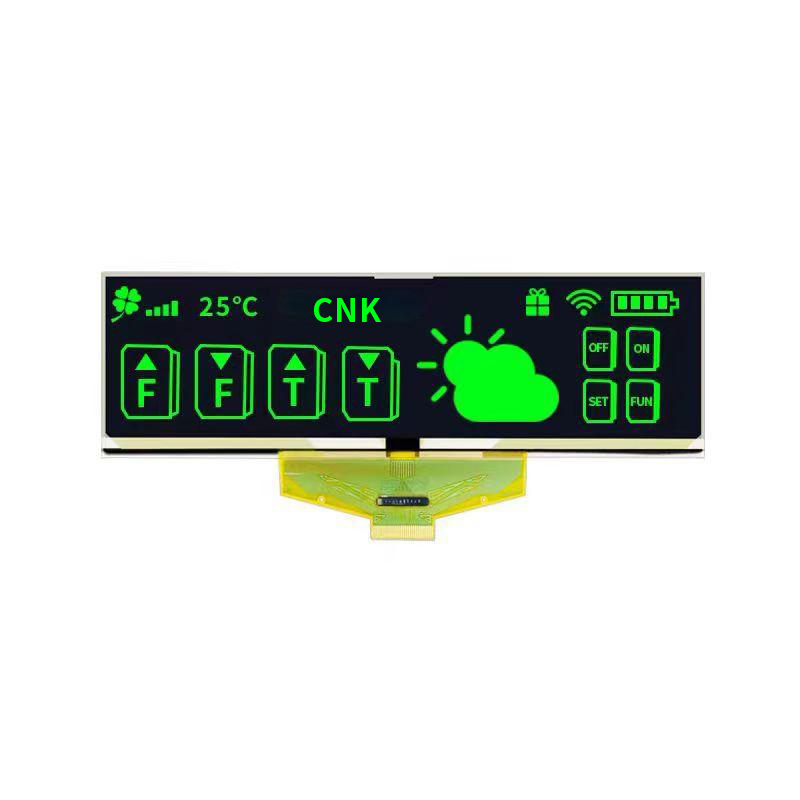

Model: CNKO5500-24459A1

Features:  1) Low power consumption and durability

2) Lightweight and thin 3) Ultra wide temperature

Specification：

1、Resolution: 256(H) x 64(V)

2、Active Area: 135.65(W)*33.89(H)

3、Outline Dimension: 146.00(W)*45.00(H)*1.80（T）

4、0perating Voltage: 12V

5、0perating Teperature: -40°C~80°C

6、Storage Teperature: -40°C~85°C

7、Viewing Direction: all

8、Display Color ：Green

9、Connector: Parallel / Serial

10、Driver IC: SSD1322UR1

11、package type: COF

12、RoHS Compliant：YES

Applications: high-end electronic scales, Flow meters (gas stations), instruments and meters (toll stations), etc

3.12 inch PMOLED Screen
