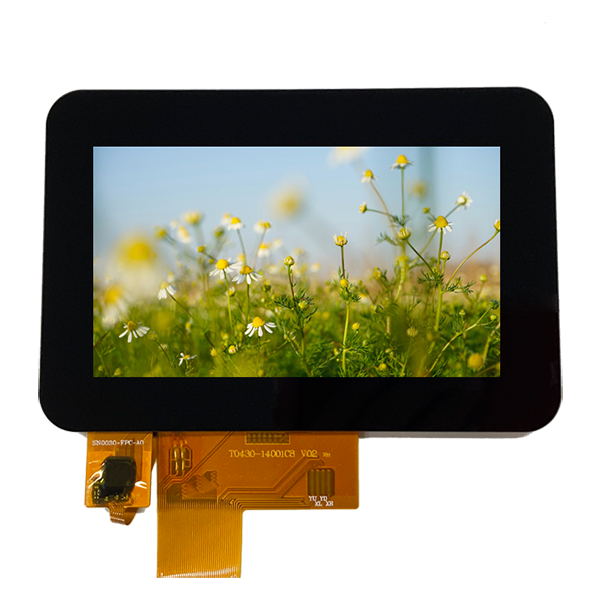

Model：CNKT0430-19173A21
Features: 1) Bright colors 2) Wide temperature  3) Compliant with RoHS standards
Specification：
1、Resolution：480 (RGB) x 272
2、Active Area: 95.04mm (H)  x 53.85 mm (V)
3、Outline Dimension: 123.8 mm (H)  x 82.8 mm (V)
4、Display Type: Transmissive, Normally-white TFT-LCD
5、0perating Voltage：2.8V~3.3V
6、0perating Teperature：-20°C~70°C
7、Storage Teperature: -30°C~80°C
8、Viewing Direction: 6:00
9、Display Number of Colors :16.7MB
10、luminance: 300cd/m^2
11、Connector: RGB
12、RoHS Compliant: Yes

Product Application: Medical equipment, OBD diagnostic, Industrial control equipment, etc
