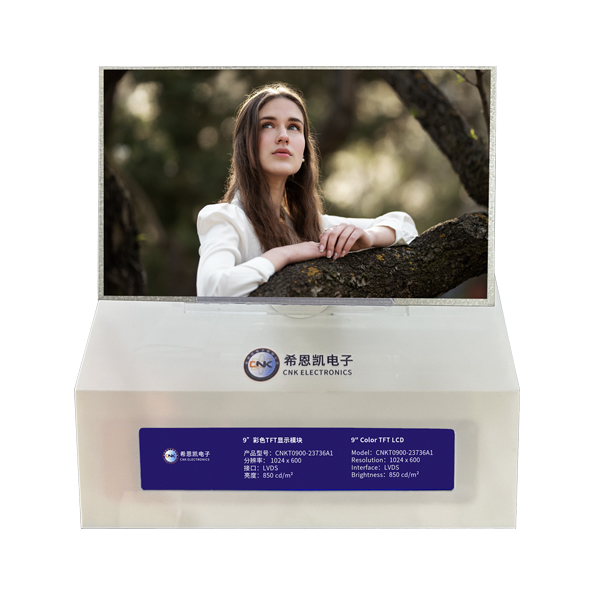

Model：CNKT0900-23736A1
Features：1）IPS full view   2）RoHS Compliant  3）Ultra-wide temperature
Specifications：
2、Resolution：1024 (RGB) x 600
2、Active Area:  196.61mm x114.15 mm
3、Outline Dimension:  210.70mm x126.50 mm
4、Display Type:  IPS
5、Viewing Direction:All
6、 LCD 0perating Voltage：3.3V
7、Luminance : 850cd/m²
8、 0perating Teperature：-30°C~85°C
9、 Storage Teperature: -40°C~90°C
10、Display Mode : Normally Black
11、Connector:  LVDS
12、IC:  HX8282-A11/HX8695-A01
13、RoHS Compliant：YES

Product  Application：for car dashboard, medical devices,Self-service terminal, smart homes, etc.

Model：CNKT0900-23736A1

Features：1）IPS full view   2）RoHS Compliant  3）Ultra-wide temperature

Specifications：

2、Resolution：1024 (RGB) x 600

2、Active Area:  196.61mm x114.15 mm

3、Outline Dimension:  210.70mm x126.50 mm

4、Display Type:  IPS

5、Viewing Direction:All

6、 LCD 0perating Voltage：3.3V

7、Luminance : 850cd/m²

8、 0perating Teperature：-30°C~85°C

9、 Storage Teperature: -40°C~90°C

10、Display Mode : Normally Black

11、Connector:  LVDS

12、IC:  HX8282-A11/HX8695-A01

13、RoHS Compliant：YES

Product  Application：for car dashboard, medical devices,Self-service terminal, smart homes, etc.
