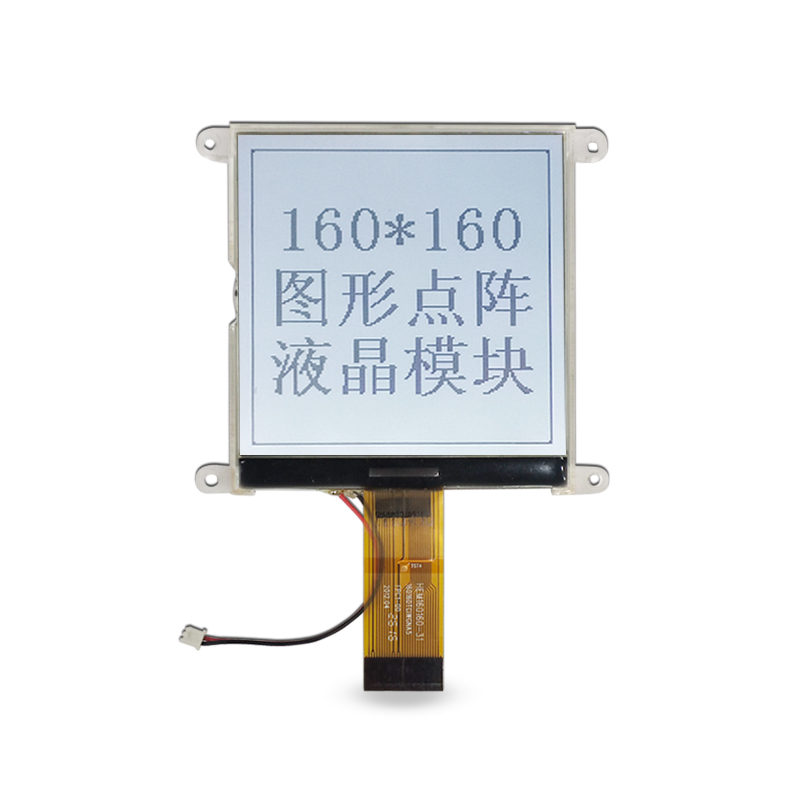

Model：CNK160160-22293A
Features:   1）high stability   2）Wide temperature
3）Excellent display with no black or white dots
Specifications：
1、Resolution: 160 x 160
2、Active Area: 54.38(W)×54.38(H) mm
3、Outline Dimension:66.5(W )×72.5(H)×5.1(T)mm
4、Display Mode: FSTN,Negative (grey),Transmissive
5、LCD 0perating Voltage：3.3V
6、0perating Temperature：-20°C~70°C
7、Storage Temperature: -30°C~80°C
8、Viewing Direction: 6: 00
9、Connector: 8080/6800/4-spi
10、IC: ST75161
11、Backlight: LED/White
12、RoHS Compliant：Yes

Product Application: Power meters, OBD testing equipment, fire-fighting equipment, etc

Model：CNK160160-22293A

Features:   1）high stability   2）Wide temperature

3）Excellent display with no black or white dots

Specifications：

1、Resolution: 160 x 160

2、Active Area: 54.38(W)×54.38(H) mm

3、Outline Dimension:66.5(W )×72.5(H)×5.1(T)mm

4、Display Mode: FSTN,Negative (grey),Transmissive

5、LCD 0perating Voltage：3.3V

6、0perating Temperature：-20°C~70°C

7、Storage Temperature: -30°C~80°C

8、Viewing Direction: 6: 00

9、Connector: 8080/6800/4-spi

10、IC: ST75161

11、Backlight: LED/White

12、RoHS Compliant：Yes

Product Application: Power meters, OBD testing equipment, fire-fighting equipment, etc
