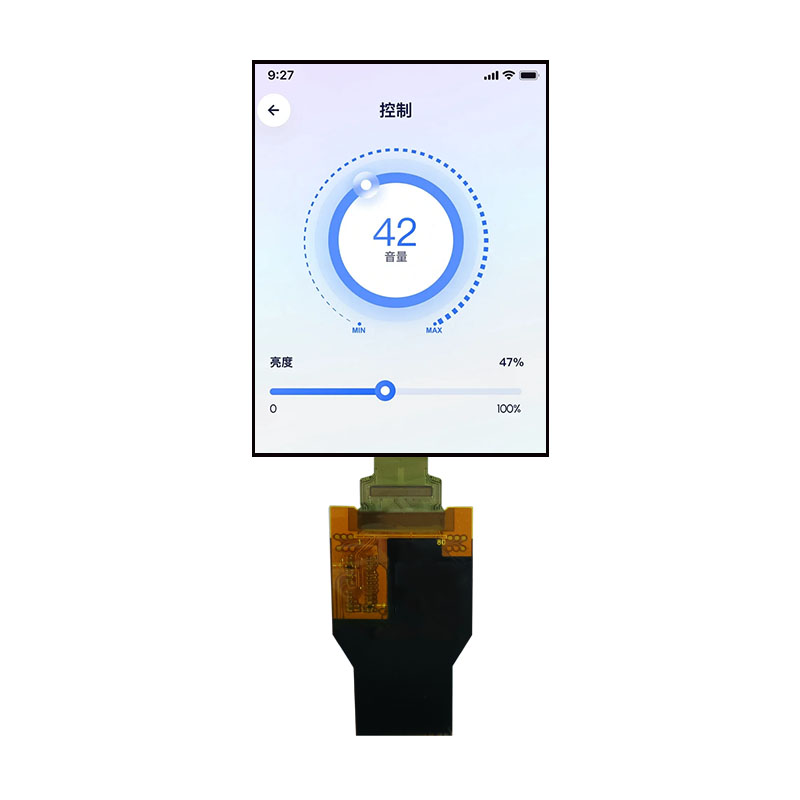

2.4”AMOLEM

显示类型：刚性 AMOLED

显示区域：36.72*48.96mm

面板尺寸(H x V)：38.72*51.56mm

分辨率：450RGB*600

色深：16.7M(24bit)

可视方向：全向

驱动IC（类型）：RM690B0

接口：SPI/MCU/MIPI

TFT技术类型：LTPS

寿命：290小时

面板厚度：0.5mm

偏光片类型：0.147mm

SCF：0.13mm

亮度：800cd/m²

对比度：100000:1

色移(左/右/上/下 30°)：4JNCD

工作温度：-20~+80°C

存储温度：-40~+80°C

应用：智能家电，智能手表，智能屏

Download

A515屏幕总成

通用型号：A515屏幕总成

尺寸：6.43”

色彩：16.7M（RBGX8bits）

分辨率：1080*2400

亮度：660cd/㎡

接口：MIPI4lanes

工作温度：-20-70℃

该产品是6.43英寸AMOLED屏幕，兼顾细腻画质与舒适握持体验，适配主流智能设备设计。其1080×2400分辨率（409 PPI）结合16.7M色（RGB 8bit）色彩显示能力，可精准还原丰富细节与真实色彩，满足影音娱乐、图像处理等高阶视觉需求。屏幕峰值亮度达660cd/㎡，搭配AMOLED自发光特性，强光环境下依然清晰可见，同时显著降低功耗，提升终端设备续航表现。

Download

A725屏幕总成

通用型号：A725

尺寸：6.43”

色彩：16.7M（RBGX8bits）

分辨率：1080*2400

亮度：660cd/㎡

接口：MIPI4lanes

工作温度：-20-70℃

Download

Hmnote11FHD 屏幕总成

产品型号：Hmnote11FHD 屏幕总成

尺寸：6.43”

色彩：16.7M（RBGX8bits）

分辨率：1080*2400

亮度：660cd/㎡

接口：MIPI4lanes

工作温度：-20-70℃

该产品搭载1080*2400 FHD+分辨率面板，像素密度达409PPI，结合16.7M色深与RGB 8bit色域技术，可精准呈现1670万种色彩，满足专业级图像显示需求。660cd/㎡的高亮度配置确保户外强光环境下的可视性，较同类产品提升15%能效表现。硬件层面采用MIPI 4lane高速接口协议，支持最高4.5Gbps传输带宽，兼容主流移动处理器平台。宽温域工作特性（-20℃~70℃）通过严苛环境测试，配合CNK专利的模块化封装技术，显著提升设备在极端温度下的稳定性表现。

Download

1+5TFHD屏幕总成

产品型号：1+5TFHD屏幕总成

尺寸：5.9”

色彩：16.7M（RBGX8bits）

分辨率：1080*2220

亮度：660cd/㎡

接口：MIPI4lanes

工作温度：-20-70℃
该产品采用RGB 8bit色深技术，支持16.7M全彩显示，分辨率达1080*2220，画面细腻度达423PPI，可精准还原图像细节。660cd/㎡的高亮度特性确保强光环境下可视性，配合MIPI 4 lanes高速接口，实现低功耗与高刷新率的数据传输。此外，产品通过宽温域设计（-20℃~70℃）及工业级可靠性测试，可稳定运行于极端环境，适配车载、户外设备等复杂场景。

Download

3.12 inch PMOLED Screen

Model：CNKO3120-24213B1

Features:  1) Low power consumption and durability

2) Lightweight and thin 3) Ultra wide temperature

Specification：

1、Resolution: 256(H) x 64(V)

2、Active Area: 76.78 (W) x 19.18 (H)

3、Outline Dimension: 88.00 (W) x27.80 (H)

4、0perating Voltage: 12V

5、0perating Teperature: -40°C~80°C

6、Storage Teperature: -40°C~85°C

7、Viewing Direction: all

8、Display Color ：Blue

9、Connector: Parallel / Serial

10、Driver IC: SSD1322UR1

11、package type: COF

12、RoHS Compliant：YES

Applications: industrial control instruments, vehicle mounted aftermarket, audio equipment, etc.

Download

5.5 inch PMOLED Screen

Model: CNKO5500-24459A1

Features:  1) Low power consumption and durability

2) Lightweight and thin 3) Ultra wide temperature

Specification：

1、Resolution: 256(H) x 64(V)

2、Active Area: 135.65(W)*33.89(H)

3、Outline Dimension: 146.00(W)*45.00(H)*1.80（T）

4、0perating Voltage: 12V

5、0perating Teperature: -40°C~80°C

6、Storage Teperature: -40°C~85°C

7、Viewing Direction: all

8、Display Color ：Green

9、Connector: Parallel / Serial

10、Driver IC: SSD1322UR1

11、package type: COF

12、RoHS Compliant：YES

Applications: high-end electronic scales, Flow meters (gas stations), instruments and meters (toll stations), etc

Download

OLED display module

Features： 1）Low power , long life   2）Thin and light, no backlight

3）Ultra-wide temperature

Specifications：

1、Resolution: 128(W) x 64(H)

2、Active Area: 21.74mm (W) x 11.20 mm (H)

3、Outline Dimension: 24.7 mm (W) x 16.6 mm (H)

4、Display Type:  PMOLED

5、Display Color：Blue &Yellow

6、LCD 0perating Voltage: 3.3V

7、0perating Teperature: -40°C~70°C

8、Storage Teperature: -40°C~80°C

9、Viewing Direction: all

10、Connector: I2C/Serial/8080/6800

11、Driver IC: SSD1315Z

12、IC package type: COG

13、RoHS Compliant：YES

Product Application：Blood oxygen instrument, intelligent wearable, drone and other medical and communication equipment

Download

OLED display module

Model：CNKO1540-23239B1

Features： 1）Low power , long life   2）Thin and light, no backlight

3）Ultra-wide temperature

Specifications：

1、Resolution: 128(H) x 64(V)

2、Active Area: 35.04mm (H)  x 17.51 mm (V)

3、Outline Dimension: 42.04 mm (H)  x 27.22 mm (V)

4、 Display Type:  PMOLED

5、LCD 0perating Voltage: 3.3V

6、0perating Teperature: -40°C~80°C

7、Storage Teperature: -40°C~85°C

8、Viewing Direction: all

9、Connector: Parallel / SPI/IIC

10、Driver IC: SSD1305Z

11、IC package type: COG

12、RoHS Compliant：YES

Product  Application：Blood oxygen instrument, intelligent wearable, drone and other medical and communication equipment

Download

0.96inch Micro-OLED Display Module

MODEL：CNK096SXGA+
Display Size: 0.96inch
Resolution: 1400*1050
Maximum Brightness : 30000 cd/㎡
Display Color: Single green
Interface：16 bit parallel input
Color Pixel Arrangemen：Square
Active Area：20.1mm*15.15mm

Download

0.39inch Micro-OLED Display Module

MODEL：CNK039XGA
Display Size: 0.39inch
Resolution: 1024*768
Maximum Brightness : 2000 cd/㎡
Display Color: Full Color
Interface：MIPI
Color Pixel Arrangemen：Vertical RGB strips
Active Area：12.08mm*8.52mm

Download

0.60inch Micro-OLED Display Module

MODEL：CNK060SVGA
Display Size: 0.60inch
Resolution: 800*600
Maximum Brightness : 3000 cd/㎡
Display Color: Full Color
Interface：RGB
Color Pixel Arrangemen：Vertical RGB strips
Active Area：15.19mm*14.36mm

Download

0.39inch Micro-OLED Display Module

MODEL：CNK039XGA
Display Size: 0.39inch
Resolution: 1024*768
Maximum Brightness : 1500 cd/㎡
Display Color: Full Color
Interface：RGB
Color Pixel Arrangemen：Vertical RGB strips
Active Area：12.08mm*8.52mm

Download

0.71inch Micro-OLED Display Module

MODEL：CNK071FHD
Display Size: 0.71inch
Resolution: 1920*1080
Maximum Brightness : 5000 cd/㎡
Display Color: Full Color
Interface：MIPI
Color Pixel Arrangemen：Unequal sided hexagon
Active Area：15.94mm*9.04mm

Download

0.39inch Micro-OLED Display Module

MODEL：CNK039XGA
Display Size: 0.39inch
Resolution: 1024*768
Maximum Brightness : 1500 cd/㎡
Display Color: Full Color
Interface：RGB
Color Pixel Arrangemen：Vertical RGB strips
Active Area：12.08mm*8.52mm

Download

0.23inch Micro-OLED Display Module

MODEL：CNK023nHD+
Display Size: 0.23inch
Resolution: 640*400
Maximum Brightness : 10000 cd/㎡
Display Color: Full Color
Interface：MIPI
Color Pixel Arrangemen：Vertical RGB strips
Active Area：5.06mm*3.29mm

Download

0.39inch Micro-OLED Display Module

MODEL：CNK039XGA
Display Size: 0.39inch
Resolution: 1024*768
Maximum Brightness : 1500 cd/㎡
Display Color: Full Color
Interface：MIPI
Color Pixel Arrangemen：Irregular hexagon
Active Area：8.301mm*6.24mm

Download

1.54-inch OLED display screen

Product model: CNKO01540-21446A3

Resolution: 128x64

Display mode: Reflection
Interface: FPC
Working voltage: 3.3V
Module size: 42.5 (W) × 36.3 (H) × 2.45 (T) mm
Window: 37.04 (W) × 19.51 (H) mm
Working temperature: -40 ℃~70 ℃
Storage temperature: -40 ℃~80 ℃
Perspective: Full View
Driver chip: CH1116G

Download

1.3 inch OLED display screen

Product model: CNKO1300-19128A1

Resolution: 128 × sixty-four

Display color: white

Interface: FPC
Panel size: 34.5 x23.0 x 1.4 (mm)
Window: 29.42 x 14.7 (mm)
Driver chip: SH1106G

Download

0.96 inch OLED display screen

Product model: CNKO0960-18225B1-W

Pixel count/resolution: 128x64

Display color: white
Interface: Parallel/Serial/IIC

IC packaging type: COG

Boundary dimension: 26.70 (W) × 19.26 (H) × 1.55 (T) mm
Display size: 21.74 (W) × 11.175 (H) (mm)

Download

0.96 inch OLED display screen

Product model: CNKO0960-21253A1

Pixel count/resolution: 128 × sixty-four

Display color: yellow and blue dual color

Interface: 12C/Serail/8080/6800
IC packaging type: COG

Window: 21.74 (W) × 11.20 (H) mm

Boundary dimension: 24.70 (W) × 16.66 (H) mm
Driver chip: SSD1315Z

Download

OLED mobile phone display screen
