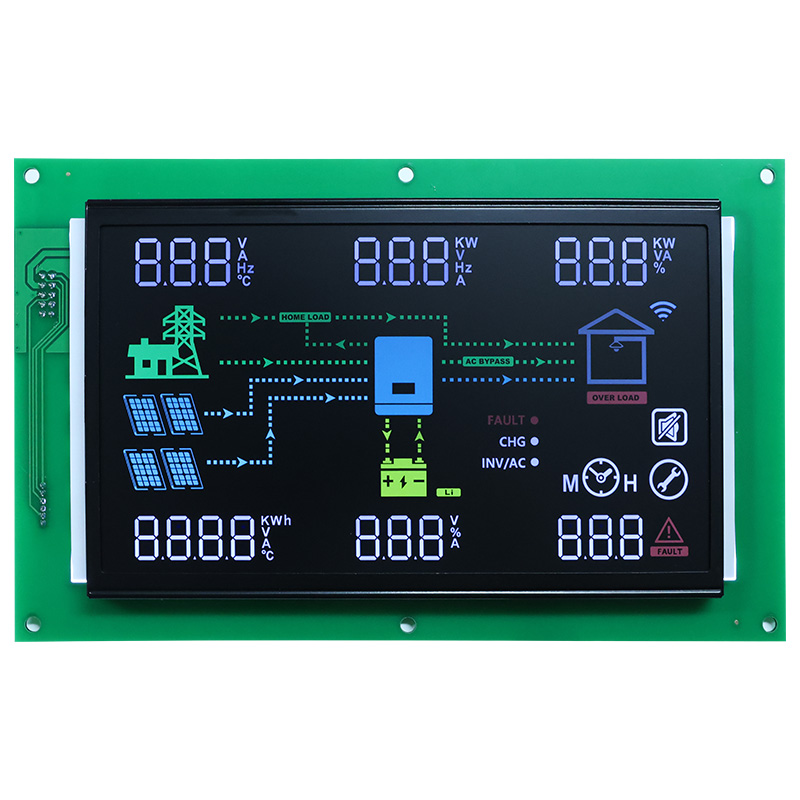

VA单色模组

产品名称：VA模组

产品型号：CNKD1002-24785A

面板类型：VA模组产品

分辨率：断码

视角：12:00

模块尺寸：210.00mm*130.mm

显示面积：N/A

工作温度：-30℃+80℃

存储温度：-40℃+90℃

驱动IC：HT1621/HT1621

接口：I2C/SPI

重量：TBD

产品应用：电力储能、充电桩

Download

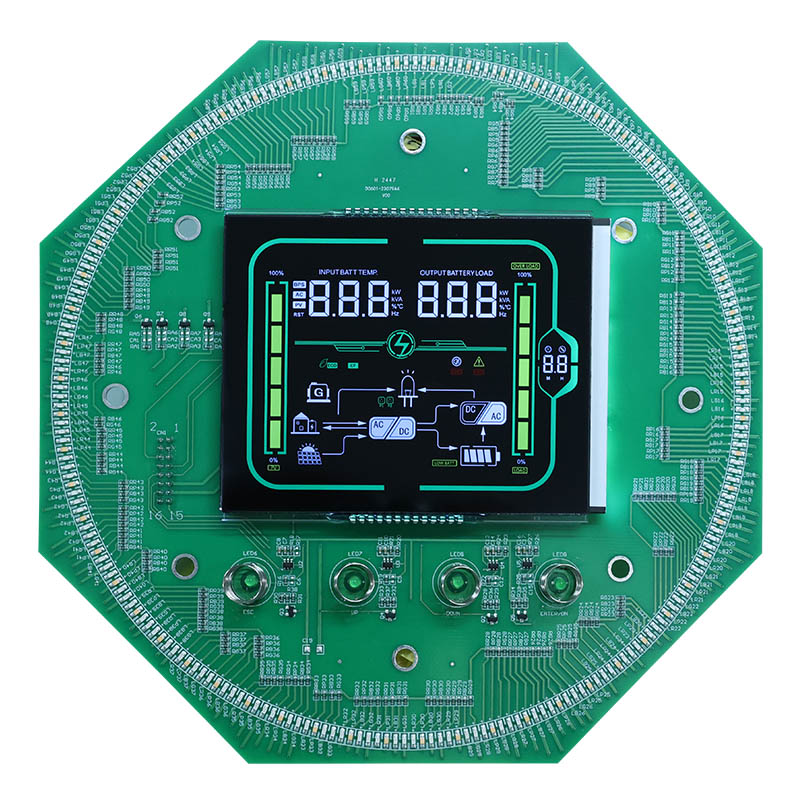

VA断码屏+LED

产品型号：CNKD0601-23079A4

产品名称：VA、段码屏+LED

产品特点：1)高对比度      2）多彩显示效果

分辨率：断码

外形尺寸：210MM*210MM

可视区域：101MM*82MM

工作温度：-20+70℃

存储温度：-30+80℃

驱动IC： CS1622(SMD)

视角：6'OCLOCK

接口： SPI

色域：VA黑白

面板：TBD

亮度：N/A

ROHS：符合

产品应用：户外电源、储能器、电源设备

Download

VA段码显示模组

产品型号：CNKD0402-24055A2

产品名称：VA段码显示模组

产品特点：1)高亮/高对比度    2）彩色显示图案
规格参数：

1、外形尺寸：80.8mm*58.00mm

2、可视区域：  71.80mm*55.00mm

3、工作温度：-30℃+80℃

4、存储温度：-40℃+90℃

5、驱动IC：CN91C4S48

6、视角：6:00

7、接口：I2C

8、色域：N/A

9、面板：一体黑

10、亮度：100cd/m2

11、ROHS：符合

产品应用：仪表，工控设备，户外设备

Download

异形单色显示模组

产品型号：CNKD0602-24562A

产品名称：异形单色显示模组

产品特点:  1) 宽视角      2）高性耐性（85℃*85%rh*1000h）

规格参数

1.分辨率：笔段式

2、可视区域:67mm*32mm

3、外形尺寸: 71mm*43mm

4、工作电压：4.5V

5、工作温度：-40+95℃

6、存储温度：-45+105℃

7、视角:12:00

8、驱动IC:TBD

9、亮度: 800CD/M2

10、连接方式: PIN

11、RoHS:符合

Download

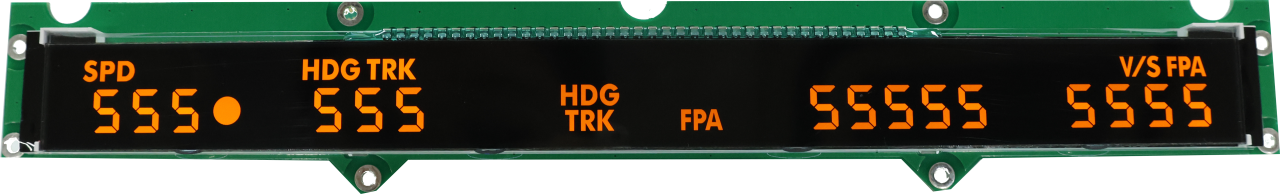

段码VA垂直排列性显示模组

产品型号：CNKD1501-24332A1

产品名称：段码VA垂直排列性显示模组

产品特点:  1)  高对比1000:1   2）超宽视角110度

规格参数：

1、可视区域: 217mm*15.3mm

2、外形尺寸:244mm*37mm

3、面板: VA垂直排列性显示

4、工作电压：4.5V

5、工作温度：-30℃+80℃

6、存储温度：-35℃+85℃

7、视角:12H

8、色域:RGB

9、亮度:N/A

10、接口: I2C

11、RoHS:符合

主要应用: 储能设备，车载仪表，工控设备

Download

Large VA display module

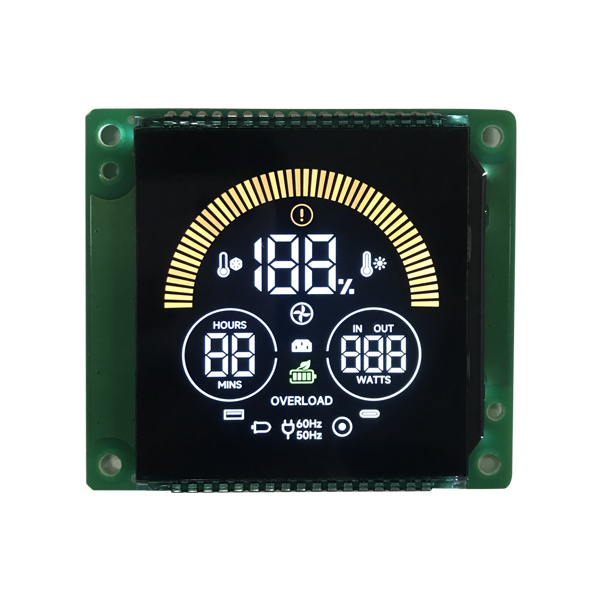

Model：CNKD0502-24046A1

Features：1）Sunlight readable  2）Wide temperature  3）RoHS Compliant

Specifications：

1、Active Area: 51mm (H)  x 51 mm (V)

2、Outline Dimension: 65 mm (H)  x 65 mm (V)

3、Display Type:  VA, NEGATIVE

4、LCD 0perating Voltage：3.3V

5、0perating Temperature：-20°C~70°C

6、Storage Temperature: -30°C~80°C

7、Viewing Direction: 12: 00

8、Polarizer Type: TRANSMISSIVE

9、Backlight：White

10、Connector: SPI

11、IC: HT1621

12、RoHS Compliant：YES

Product Application：outdoor power supply, UPS uninterruptible power supply, charging pile etc.

Download

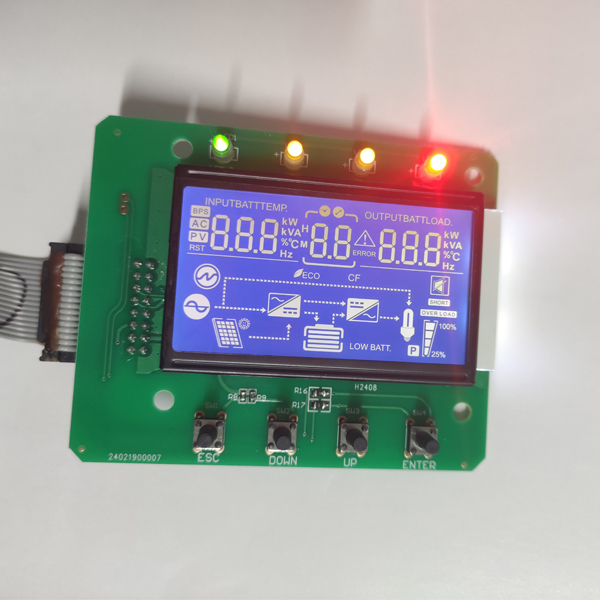

Medium size single crystal display module

Model：CNKD0801-21041A9

Features：1）Sunlight readable           2）Wide temperature

3）RoHS Compliant

Specifications：

1、Active Area: 59.9mm (H)  x 32.5 mm (V)

2、Outline Dimension: 88.1 mm (H)  x 72 mm (V)

3、Display Type: HTN (Blue) NEGATIVE

4、LCD 0perating Voltage： 5.0V

5、0perating Teperature：-20°C~70°C

6、Storage Teperature:  -30°C~80°C

7、Viewing Direction: 12: 00

8、 Polarizer Type: TRANSMISSIVE

9、Backlight：White

10、Connector: SPI

11、IC: HT1621

12、RoHS Compliant：YES

Product  Application：UPS uninterruptible power supply, charging pile, outdoor power supply,etc.

Download

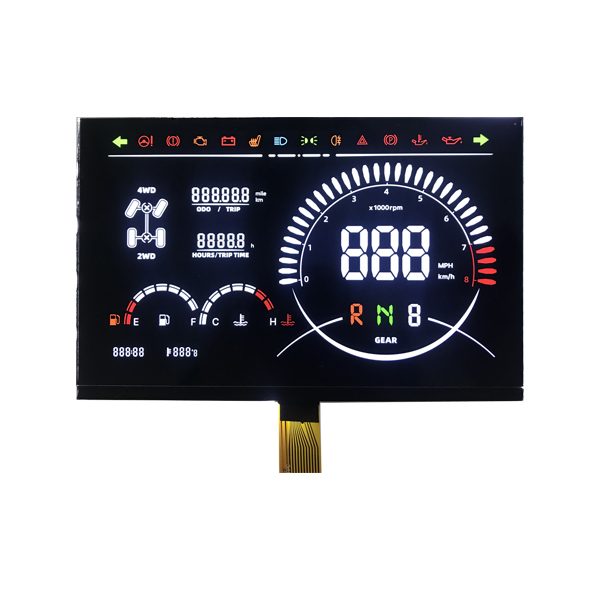

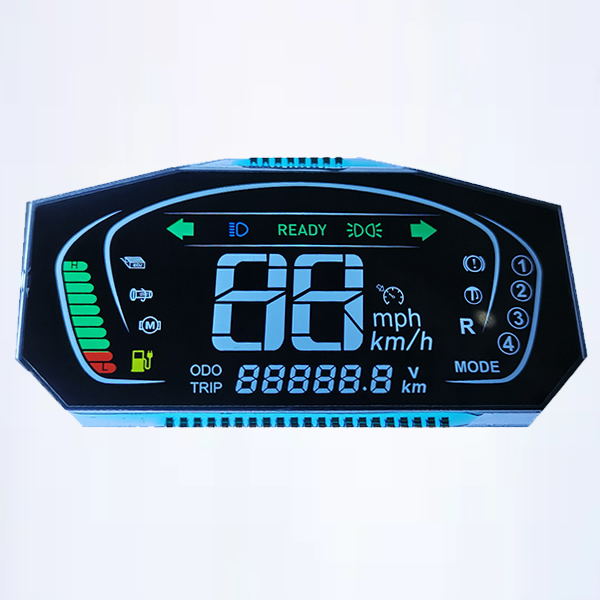

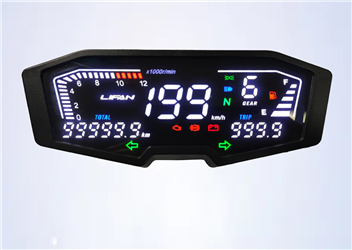

Large VA display module

Model：CNKD0903-23830A1

Features：1）Multiple colors           2）Sunlight readable

3）Ultra-wide temperature     4） Low power

Specifications：

1、Active Area: 152.4 mm (H)  x 91.44 mm (V)

2、Outline Dimension: 202.5 mm (H)  x 121.58 mm (V)

3、Display Type: NEGATIVE

4、LCD 0perating Voltage： 5.0V

5、0perating Teperature：-30°C~85°C

6、Storage Teperature: -40°C~90°C

7、Viewing Direction: 6: 00

8、 Polarizer Type: TRANSMISSIVE

9、Connector: SPI

10、IC: UC2621C

11、Backlight:White

12、RoHS Compliant：YES

Product  Application：for motorcycles,eBike, electric vehicles, etc.

Download

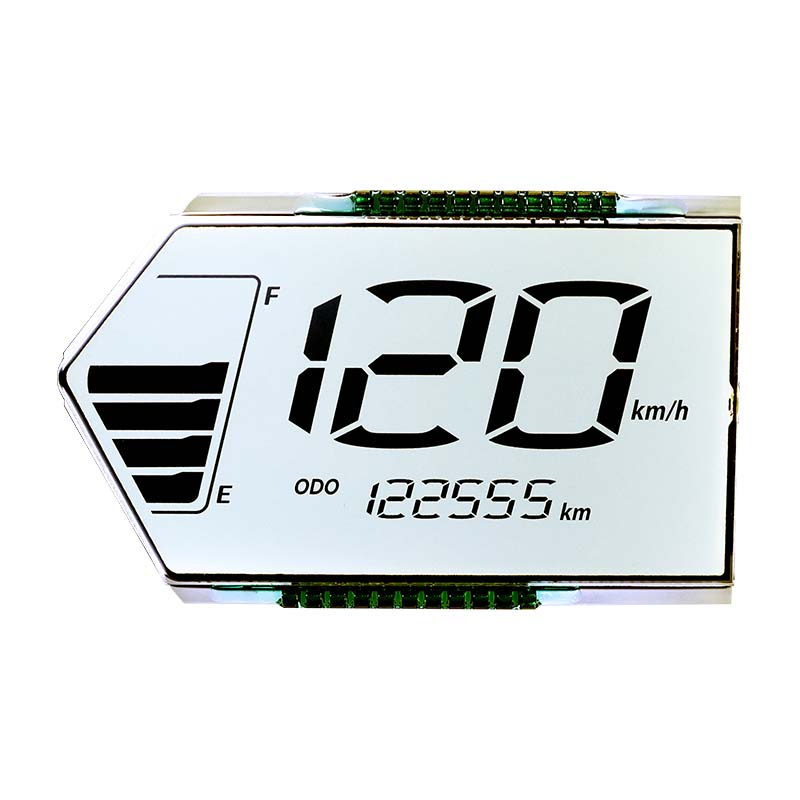

Medium to large VA broken code screen

Model：CNKD0605-23393A-LCD

Features：1）Multiple colors  2）Font readable  3）Ultra-wide temperature

Specifications：

1、Active Area: 201 mm (H)  x 53 mm (V)

2、Outline Dimension:205 mm (H)  x 61 mm (V)

3、Display Type: NEGATIVE Display

4、LCD 0perating Voltage： 5.0V

5、0perating Teperature：-30°C~80°C

6、Storage Teperature:  -40°C~85°C

7、Viewing Direction: 6: 00

8、Polarizer Type: TRANSMISSIVE

9、Connector：PIN

Product Application：automotive electronics

Download

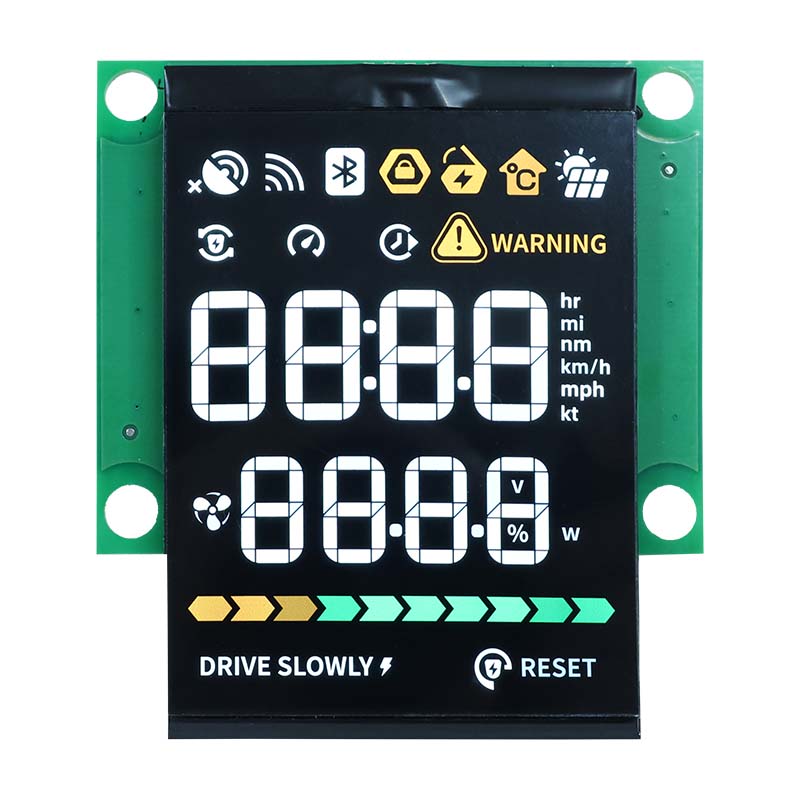

Medium to large-size VA display module

Model：CNKD0601-23465A1

Features：1）Sunlight readable   2） Low power  3）Wide temperature

Specifications：

1、Active Area: 34mm (H)  x 34 mm (V)

2、Outline Dimension: 55 mm (H)  x 55 mm (V)

3、Display Type:  NEGATIVE Display

4、LCD 0perating Voltage：3.3V

5、0perating Teperature：-20°C~70°C

6、 Storage Teperature: -30°C~80°C

7、Viewing Direction: 12: 00

8、Polarizer Type: TRANSMISSIVE

9、Backlight：White

10、Connector: SPI

11、IC: AIP31621

12、RoHS Compliant：YES

Product  Application：UPS uninterruptible power supply, charging pile, outdoor power supply and other new energy equipment

Download

VA full view+multi color screen printed LCD

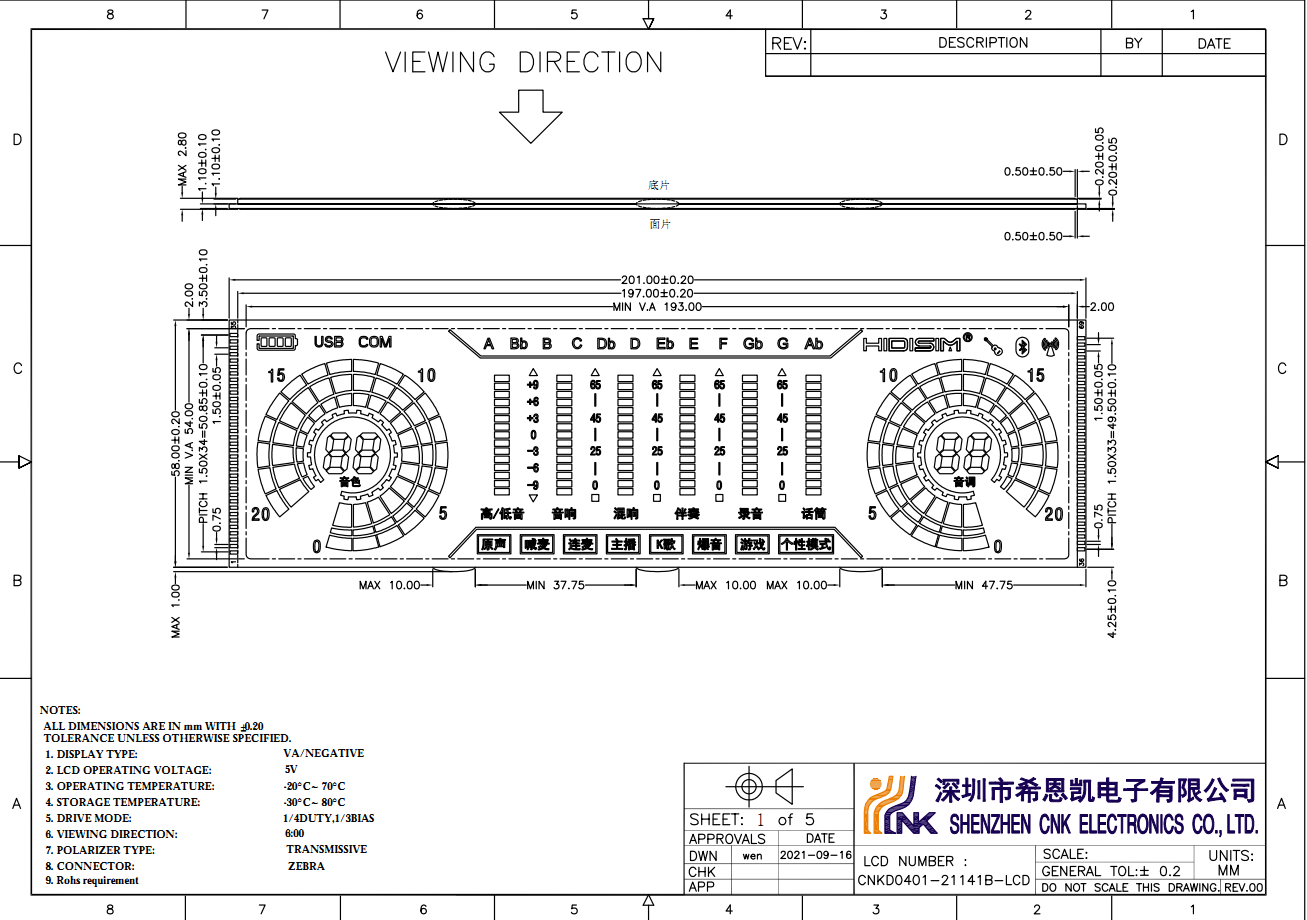

Product model: CNKD0401-211411B-LCD

Display mode: VA, negative display, full transparency

Interface: Hot pressed zebra paper

Working voltage: 5V

Boundary dimension: 201 (W) × 58 (H) × 2.8 (T) mm

Window: 197 (W) × 54 (H) mm

Working temperature: -20 ℃~70 ℃

Storage temperature: -30 ℃~80 ℃

Perspective: 6:00

Product application: Host console, live broadcast room master control

Download

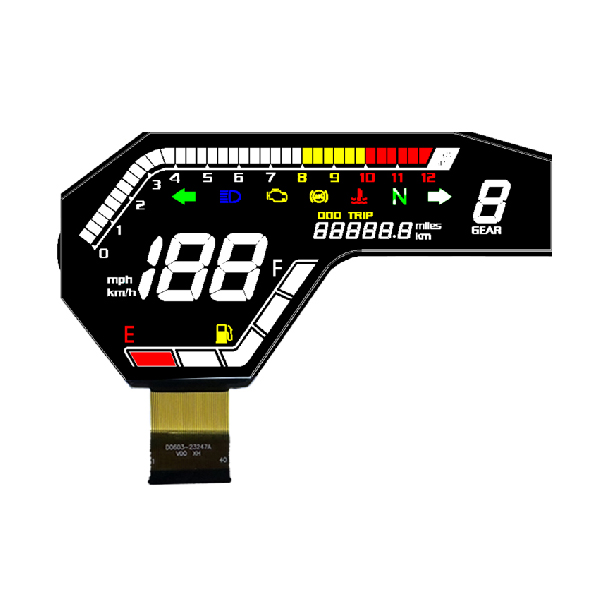

VA full view multi color screen printed LCD

Product model: CNKD0603-23247A-LCD

Display mode: VA, negative display, full transparency

Interface: FPC

Working voltage: 5V

Working temperature: -30 ℃~80 ℃

Storage temperature: -40 ℃~90 ℃

Perspective: 6:00

Product Application: Electric Vehicle Panel

Download

Negative segment code screen

Product model: CNKD0503-14001A

Display mode: TN, negative display, full transparency

Working voltage: 5V

Boundary dimension: 91 (W) × 76 (H) × 9 (T) mm

Window: 72 (W) × 54 (H) mm

Working temperature: 0 ℃~50 ℃

Storage temperature: -20 ℃~70 ℃

Perspective: 12:00

Driver chip: HT1621

Product Application: Medical

Download

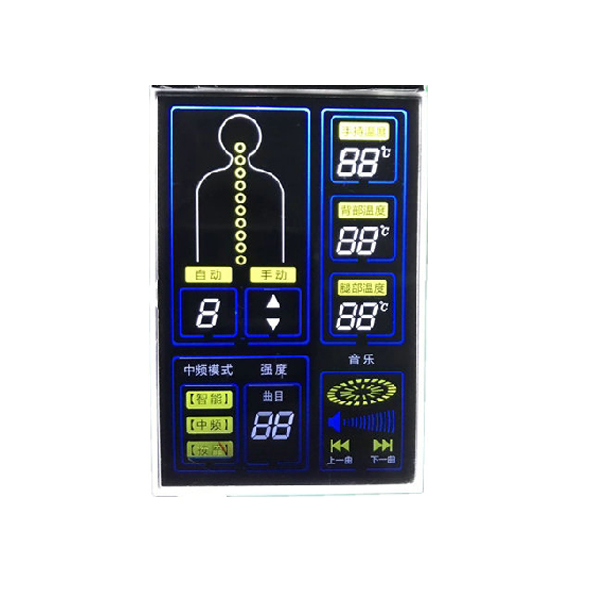

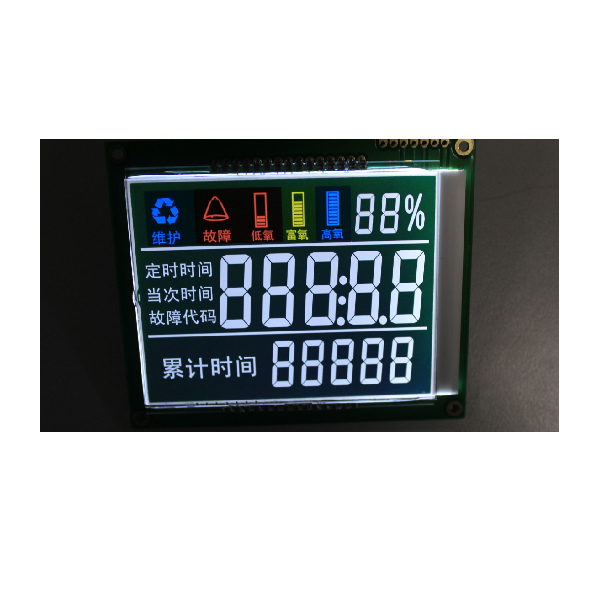

VA color screen segment code module

Product model: CNKD0502-13002A

Display mode: VA, negative display, full transparency

Interface: PIN

Working voltage: 5V

External dimensions: 193W) × 61 (H) × 7.4 (T) mm

Window: 149 (W) × 48 (H) mm

Working temperature: -10 ℃~55 ℃

Storage temperature: -20 ℃~65 ℃

Perspective: 6:00

Driver chip: HT1621B

Product application: industries such as healthcare and instrumentation

Download

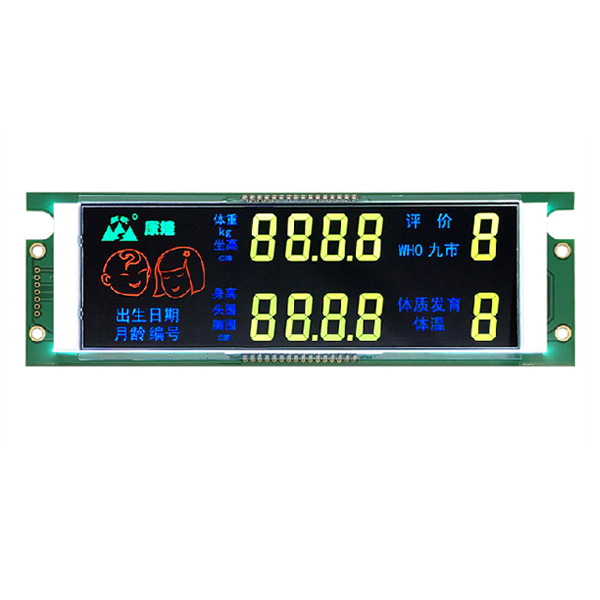

02 × 04 negative display segment code screen

Product model: CNKD0204-16091A1

Display mode: VA, negative display, full transparency

Interface: FPC

Working voltage: 5V

External dimensions: 77.0 (W) x51.0 (H) x6.2 (T) mm

Window: 64 (W) x41 (H)

Working temperature: 0 ℃~50 ℃

Storage temperature: -10 ℃~60 ℃

Perspective: 6:00

Driver chip: HT1621

Product Application: Healthcare

Download

Segment code VA black mode LCD module

Product model: CNKD0401-14004A1

Display mode: VA, negative display, full transparency

Interface: Hot pressed zebra paper

Working voltage: 5V

Boundary dimension: 70 (W) × 90 (H) × 14.5 (T) mm

Window: 51 (W) × 51 (H) mm

Working temperature: -20 ℃~70 ℃

Storage temperature: -30 ℃~80 ℃

Perspective: 12:00

Driver chip: TCP802

Product Application: New Energy

Download

TN blue mode forward display segment code screen

Product model: CNKD0601-13001A2

Display mode: TN, forward display, full transparency

Interface: Hot pressed zebra paper

Working voltage: 5V

External dimensions: 71.3 (W) × 42 (H) × 17.6 (T) mm

Display size: 53.5 (W) × 19 (H) mm

Working temperature: 0 ℃~60 ℃

Storage temperature: -20 ℃~70 ℃

Perspective: 12:00

Driver chip: HT1621

Product Application: New Energy

Download

FSTN blue mode negative display segment code LCD screen

Product model: CNKD0301-11001A

Display mode: FSTN, negative display, full transparency

Boundary dimension: 66 (W) × 32 (H) × 9.5 (T) mm

Display size: 40 (W) × 20 (H) mm

Working temperature: -20 ℃~70 ℃

Storage temperature: -30 ℃~80 ℃

Perspective: 12:00

Driver chip: HT1621

Application products: new energy, industrial control, automotive electronics, etc

Download

Eighteen × 02 Positive display segment code screen

Product model: CNKD1802-12002A

Display mode: HTN, forward display, semi transparent

Working voltage: 4.8V

Boundary dimension: 115 (W) × 44.5 (H) × 2.85max (T) mm

Window: 112 (W) × 37.5 (H) mm

Working temperature: 0 ℃~50 ℃

Storage temperature: -10 ℃~60 ℃

Perspective: 6:00

Application: Security

Download

VA color screen segment code module 1

VA color screen segment code module 1
Simple and convenient operation, high cost-effectiveness
Covering various display sizes and interfaces
Integrated built-in touch function, VA full view option available
High contrast, ultra wide temperature range, able to meet the needs of applications such as vehicle and industrial control
Display content: segment code style
Display mode: VA, negative display
Product application: mainly used for new energy vehicles, industrial control, home appliances, medical treatment, etc
Product structure: LCD COG IC FPC

Download
