1.77”TFT显示模组

产品型号：CNKT01770-24128A2

产品名称：1.77”TFT LCD Display Module

产品特点：1) 色彩丰富   2）超宽温

规格参数：

1、液晶显示屏尺寸：1.77 inch

2、面板类型：12:00

3、分辨率：128*160 px

4、外形尺寸： 33.30*42.94*2.20 mm

5、宽度：TBD

6、驱动IC:ST7735P3

7、接口：SP14

8、工作温度：-20°C+70°C

9、存储温度：-30°C+80°C

10、电源：2.6-3.3V

产品应用：游戏机、影碟机（DVD）、移动电源

Download

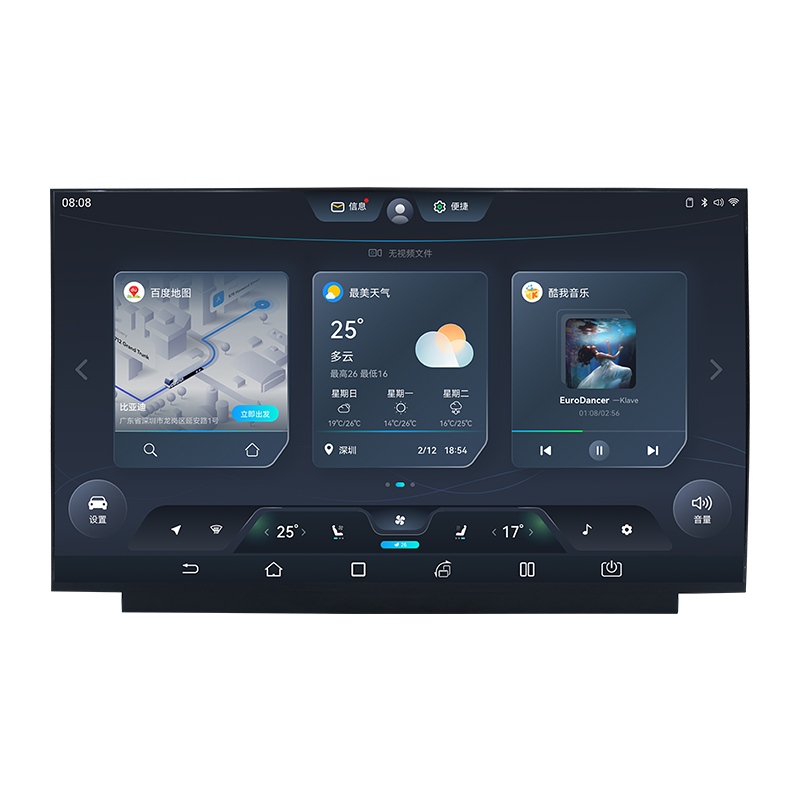

15.6”TFT显示模组

产品型号：NV156FHM-N48

产品名称：15.6”TFT显示模组

产品特点：1)全视角  2）超宽温

规格参数：

1、液晶显示屏尺寸：15.6 inch

2、可视区域： 344.16*193.59 mm

3、工作温度：0°C+50°C

4、存储温度：-20°C+60°C

5、分辨率：1920*1080 px

6、显示颜色：6bit+FRC

7、宽度：360 (max)

8、背光：1个LED照明条类型

9、尺寸轮廓：350.66(H)*216.245(V) (W/PCB)*3.2(Max)

产品应用：笔记本电脑、便携屏、汽车中控

Download

5.99''TFT显示模组

产品型号：CNKTO0599-23772A1

产品名称：5.99寸TFT显示模组

产品特点：1)全视角  2）高速传输4MIPI

规格参数：

1、液晶显示屏尺寸：5.99 inch

2、模组尺寸： 70.24*142.59*1.52 mm

3、可视区域： 68.04*136.08 mm

4、工作温度：-20°C+70°C

5、存储温度：-30°C+80°C

6、分辨率：720*1440 px

7、驱动IC： ILI9881C

8、视角：全视角

9、接口： 4MIPI

10、色域：RGB

11、面板：IPS

Download

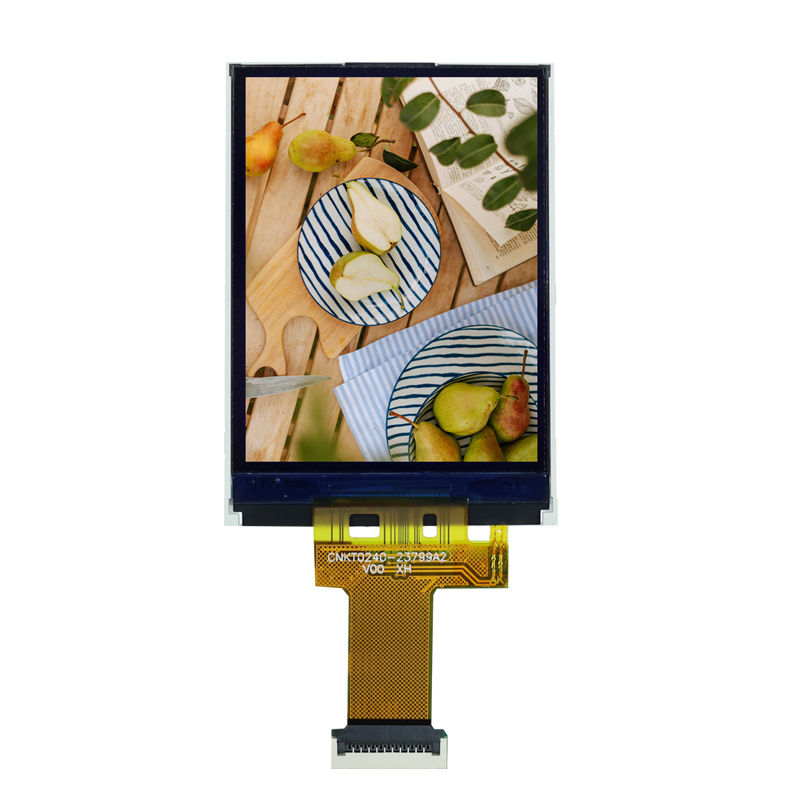

2.4 inch TN TFT LCD Display Module

Model：CNKT0240-23799A2

Features: 1) Clear display 2) Low power consumption 3) Wide temperature

Specification：

1、Resolution：240 (RGB) x 320

2、Panel Type: TN

3、Display Mode: Normally White

4、Viewing Direction: 12:00

5、Display Number of Colors: 16.7M

6、Luminance: 300cd/m^2

7、Active Area: 36.72mm x 48.96mm

8、Outline Dimension: 42.72mm x 60.26mm x 2.1mm

9、0perating Voltage：2.6V~3.3V

10、0perating Temperature：-20°C~70°C

11、Storage Temperature: -30°C~80°C

12、Connector: SPI

13、DriverIC: ST7789P3

14、RoHS Compliant: Yes

Product Application：Speedmeter, Oximeters, Mobile phones, etc.

Download

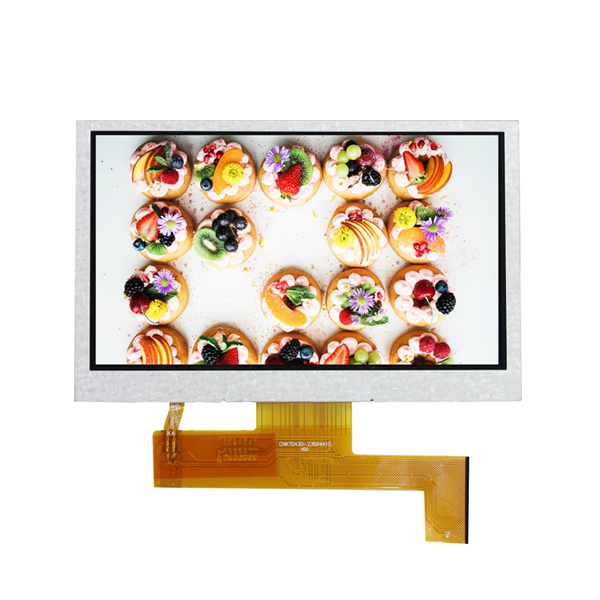

4.3 inch TFT LCD Display Module

Model：CNKT0430-23564A10

Features: 1) Bright colors   2) Wide temperature  3) Compliant with RoHS standards

Specification：

1、Resolution: 480 (RGB) x 272

2、Active Area: 95.04mm (H) x 53.86 mm (V)

3、Outline Dimension: 105.42 mm x 67.07 mm x 2.95 mm

4、Panel Type: IPS

4、Display Type: TRANSMISSIVE, NORMALLY BLACK

5、0perating Voltage：2.8V~3.3V

6、0perating Teperature：-20°C~70°C

7、Storage Teperature: -30°C~80°C

8、Viewing Direction: all

9、Display Number of Colors :16.7MB

10、Luminance: 230cd/m^2

11、Connector: RGB 8Bit

12、RoHS Compliant: Yes

Product Application：Medical equipment, OBD diagnostic, Industrial control equipment, etc

Download

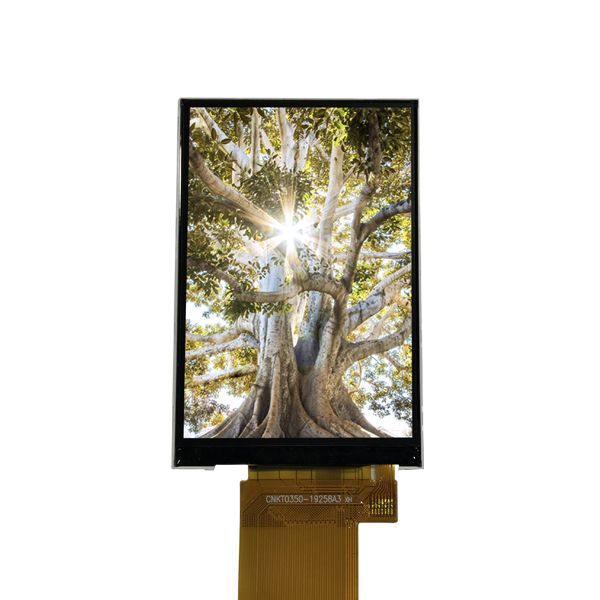

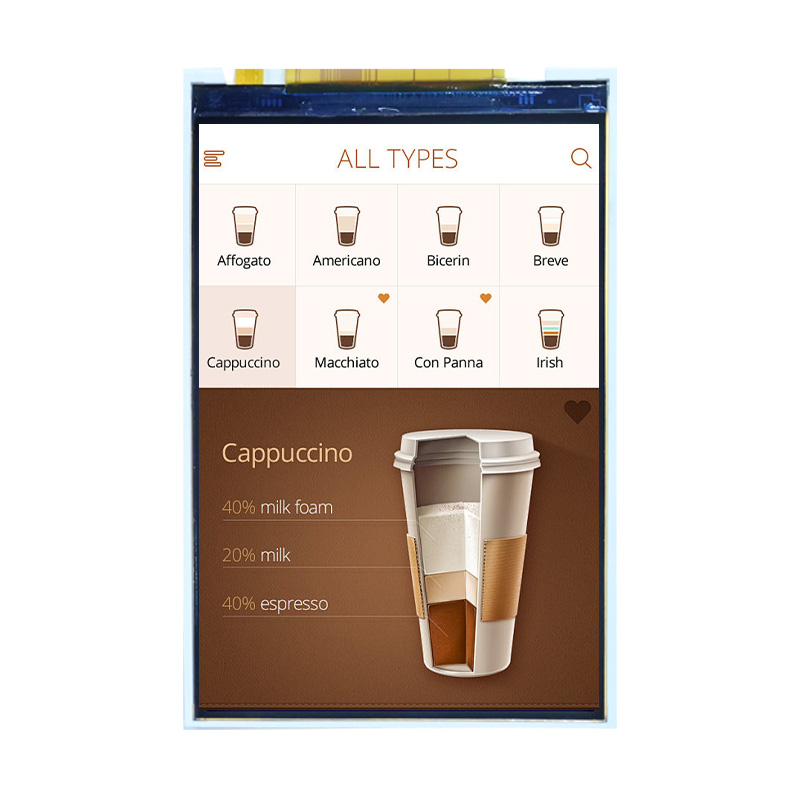

3.5inch TFT LCD Display Module

Model：CNKT0350-19258A3
Features: 1) Clear display 2) Low power consumption 3) Wide temperature

Specification：
1、Resolution：320 (RGB) x 480
2、Active Area: 48.96mm (H)  x 73.44 mm (V)
3、Outline Dimension: 54.5 mm (H)  x 83.0 mm (V)
4、Display Type: Transmissive
5、0perating Voltage：2.8V~3.3V
6、0perating Teperature：-20°C~70°C
7、Storage Teperature: -30°C~80°C
8、Viewing Direction: 12:00
9、Color:262K
10、Luminance: 300cd/m^2
11、Connector: Optional MCU/RGB/SPI
12、DriverIC: ST7796S

Product Application：POS terminals、PDA devices、Digital cameras, etc.

Download

4.3" TFT LCD Display Module

Model：CNKT0430-19173A21

Features: 1) Bright colors 2) Wide temperature  3) Compliant with RoHS standards

Specification：

1、Resolution：480 (RGB) x 272

2、Active Area: 95.04mm (H)  x 53.85 mm (V)

3、Outline Dimension: 123.8 mm (H)  x 82.8 mm (V)

4、Display Type: Transmissive, Normally-white TFT-LCD

5、0perating Voltage：2.8V~3.3V

6、0perating Teperature：-20°C~70°C

7、Storage Teperature: -30°C~80°C

8、Viewing Direction: 6:00

9、Display Number of Colors :16.7MB

10、luminance: 300cd/m^2

11、Connector: RGB

12、RoHS Compliant: Yes

Product Application: Medical equipment, OBD diagnostic, Industrial control equipment, etc

Download

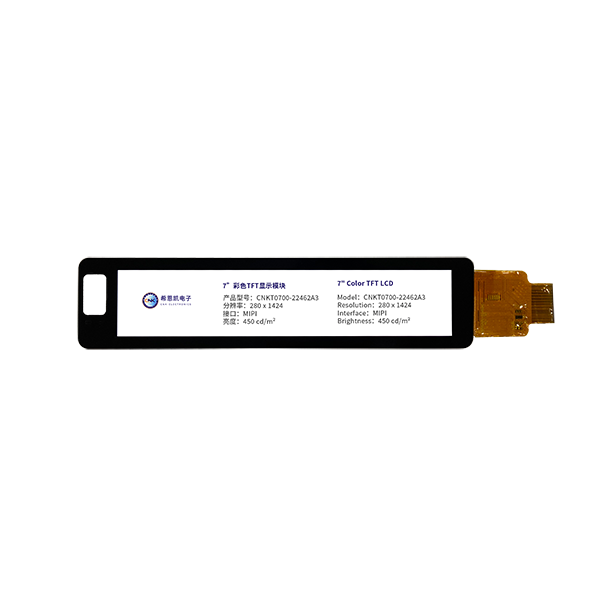

7"TFT LCD Display Module

Model：CNKT0700-22462A3

Features:  1) High Resolution 2) Optional TP
3) Optional HMI Solution  4) Wide temperature

Specifications：

1、Resolution：280 (RGB) x 1424

2、Active Area: 170.88mm x33.60 mm

3、Display Type: IPS

4、Touch Screen: CTP

5、Luminance : 450cd/m2

6、LCD 0perating Voltage：5V

7、0perating Teperature：-20°C~70°C

8、Storage Teperature: -30°C~80°C

9、Viewing Direction: all

10、Display Mode : Normally Black

11、Backlight：White LED

12、Connector: MIPI

13、IC: ST72566

14、RoHS Compliant:Yes

Product Application:  Medical, Smart Home, Energy Storage, etc

Download

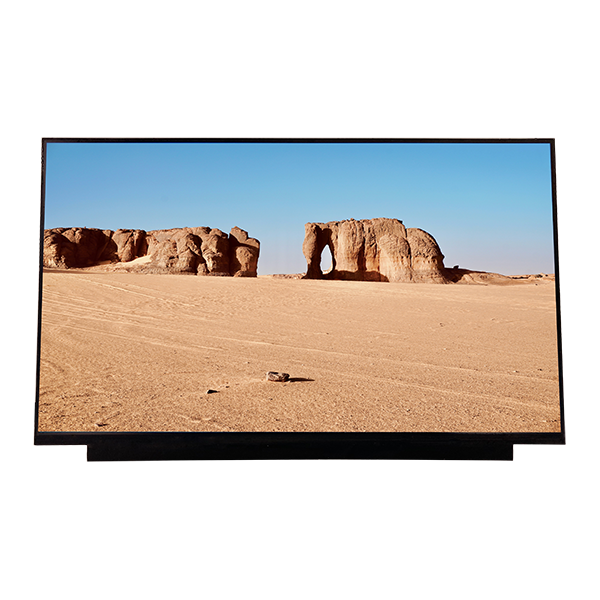

15.6''TFT LCD Display Module

Model：CNKT1560-21368B1

Features:   1) High Resolution  2) Full view IPS screen  3)Anti-Glare

Specifications：

1、Resolution：1920 (H) × 1080 (V) / 1366 (H) ×768 (V)

2、Active Area: 344.16 (H) × 193.59 (V)

3、Outline：350.66(H)*216.245(V)*3.2(Max)

4、Display Type:15.6 inch Full view IPS TFT

5、Luminance : 250cd/m2

6、LCD 0perating Voltage：3.3V

7、0perating Temperature：0°C~50°C

8、Storage Temperature: -20°C~60°C

9、Display colors: 6bit+FRC

10、Display Mode: Normally Black/White

11、Connector: EDP

12、RoHS Compliant:Yes

Product Application: Laptop, expansion screen, Cockpit central control display screen, etc

Download

5-inch TFT LCD display module

Model：CNKT0500-20325A2

Features:   1) High Stability  2) All Viewing  3) Wide Temperature

Specifications：

1、Resolution:  800(RGB)x480

2、Active Area: 108.00*64.80

3、Outline Dimension: 120.8x75.95x2.8

4、LCD Type：TFT TRANSMISSIVE

5、Luminance: 500cd/m2

6、Viewing Direction: all

7、Backlight:  White LED

8、Interface: FPC

9、Driver IC：ST7262

10、LCD 0perating Voltage：3.3V

11、0perating Temperature：-20°C~70°C

12、Storage Temperature:  -30°C~80°C

Product Application：Security equipment, OBD equipment, Facial recognition, etc

Download

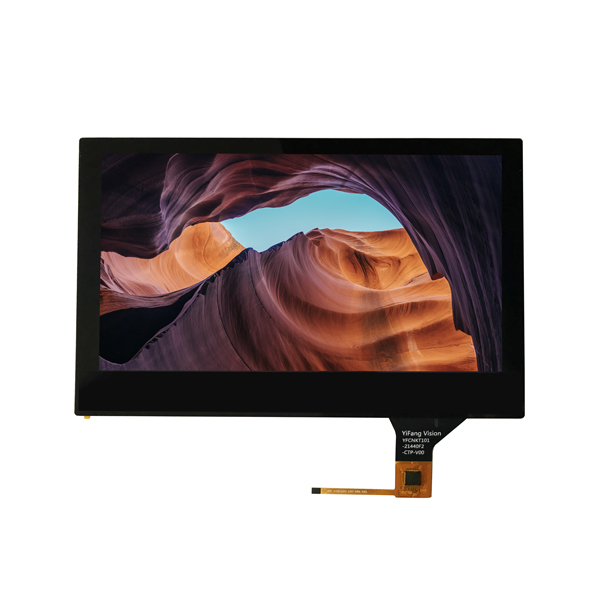

10.1 TFT touch screen display

Model：CNKT1010-23734A2

Features：

1)  High definition and high brightness

2)  IPS full view

3)  Single IC for more stable performance

4)  Wide temperature

Specifications：

1、Resolution：1280 (RGB) x 800

2、Active Area: 216.96mm x135.60 mm

3、Display Type:  10.1 inch IPS TFT

4、Touch Screen: CTP

5、Luminance : 850cd/m2

6、LCD 0perating Voltage：3.3V

7、0perating Temperature：-20°C~70°C

8、Storage Temperature: -30°C~80°C

9、Viewing Direction: all

10、Display Mode : Normally Black

11、Backlight：White

12、Connector: LVDS

13、IC: EK79202+HSD10.1

14、RoHS Compliant：Yes

Product  Application：For charging stations, vehicle displays, fire detectors, etc

Download

4.2 "⿊⽩ Red Total Reflection TFT Module

Model：CNKG0403E

Features：1）Low power    2）Sunlight readable    3）Eye protection

4）Wide temperature    5）Thin & bright

Specifications：

1、Resolution：300  x 400

2、 Active Area: 101mm (H)  x 85 mm (V)

3、Outline Dimension: 86 mm (H)  x 65 mm (V)

4、 Display Type:  4.2inch a-Si TFT

5、0perating Teperature：-20°C~70°C

6、Storage Teperature: -30°C~80°C

7、Backlight：White

8、 Connector: Type-C

9、RoHS COMPLIANT：Yes

Product  Application：Smart retail, smart education, smart home, automotive instrumentation

Download

9-inch TFT liquid crystal display module

Model：CNKT0900-23736A1

Features：1）IPS full view   2）RoHS Compliant  3）Ultra-wide temperature

Specifications：

2、Resolution：1024 (RGB) x 600

2、Active Area:  196.61mm x114.15 mm

3、Outline Dimension:  210.70mm x126.50 mm

4、Display Type:  IPS

5、Viewing Direction:All

6、 LCD 0perating Voltage：3.3V

7、Luminance : 850cd/m²

8、 0perating Teperature：-30°C~85°C

9、 Storage Teperature: -40°C~90°C

10、Display Mode : Normally Black

11、Connector:  LVDS

12、IC:  HX8282-A11/HX8695-A01

13、RoHS Compliant：YES

Product  Application：for car dashboard, medical devices,Self-service terminal, smart homes, etc.

Download

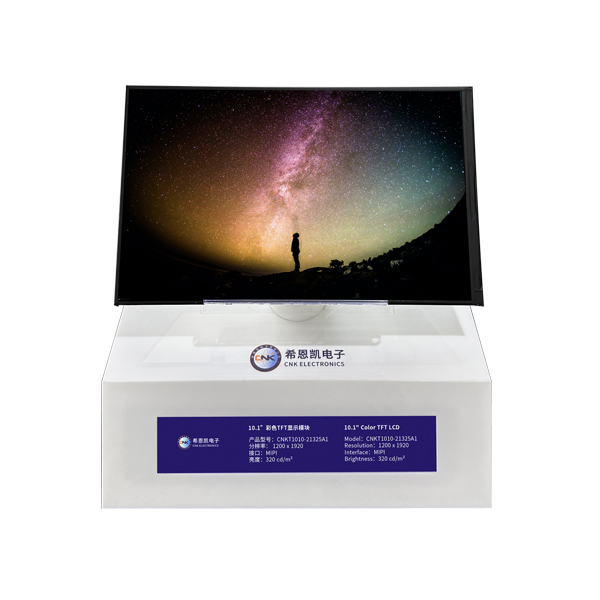

10.1 TFT liquid crystal display module

Model：CNKT1010-21325A1

Features： 1）High definition   2）IPS full view   3）Optional touch     4)Wide temperature

Specifications：

1、Resolution：1200 (RGB) x 1920

2、Active Area:  135.36mm x 216.58 mm

3、Display Type:  10.1 inch IPS TFT

4、LCD 0perating Voltage：3.3V

5、0perating Teperature：-20°C~70°C

6、Storage Teperature: -30°C~80°C

7、Viewing Direction: : All

8、Display Mode : Normally Black

9、Backlight：White

10、Connector: MIPI

11、IC: HX8279-D*2

12、RoHS Compliant：YES

Product  Application：for car dashboard, medical devices,Self-service terminal, smart homes, etc.

Download

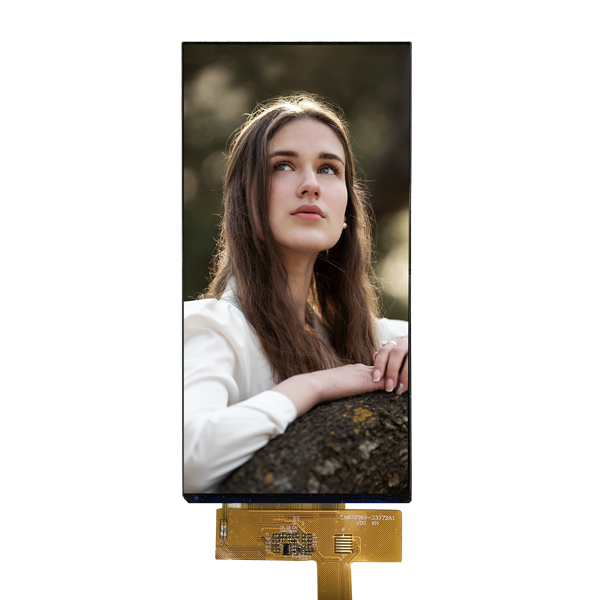

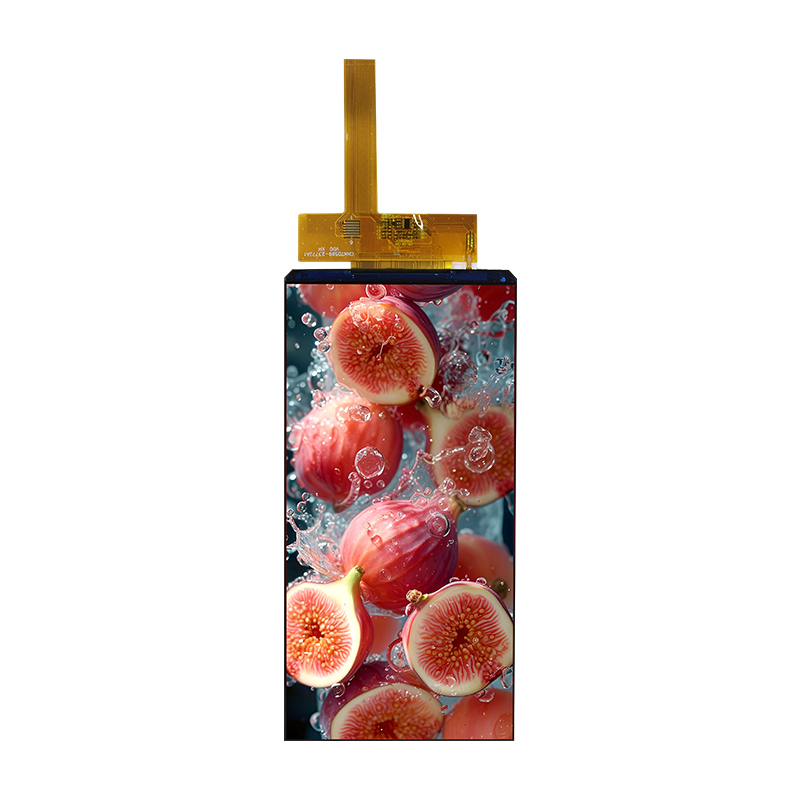

5.99-inch TFT liquid crystal display module

Model：CNKT0599-23772A1

Features：1）High definition   2）IPS full view   3）Wide temperature

Specifications：

1、Resolution：720 (RGB) x 1440

2、Active Area: 68.44mm (H)  x 136.58 mm (V)

3、Outline Dimension: 70.24 mm (H)  x 142.59 mm (V)

4、Display Type:  5.99inch IPS TFT

5、 LCD 0perating Voltage：2.8V

6、0perating Teperature：-20°C~70°C

7、Storage Teperature: -30°C~80°C

8、 Viewing Direction: All

9、Display Mode : Normally Black

10、Backlight：: White

11、 Connector: MIPI

12、IC: ILI9881C

13、RoHS Compliant：YES

Product  Application：Smart POS, Smart Phone,Drone remote control，Test Equipment etc.

Download

1.28 'TFT LCD display module

Mode：CNKT0128-21193A1

Features：1）Personalized customization  2） IPS full view

  3）Optional touch      4）Wide temperature

Specifications：

1、Resolution：240(RGB) x 240

2、Active Area: 32.4mm (H)  x 32.4 mm (V)

3、Outline Dimension: 47.3 mm (H)  x 47.3 mm (V)

4、Display Type:  1.28inch IPS TFT , 65K

5、LCD 0perating Voltage：3.3V

6、0perating Teperature：-20°C~70°C

7、Storage Teperature: -30°C~80°C

8、Viewing Direction: All

9、Display Mode :Normally Black

10、Backlight：White LED

11、Connector: SPI

12、IC: GC9A01

Product  Application：Smart watches/phone watches, sports bracelets, small home appliances, etc.

Download

15.6-inch TFT display screen

Product model: CNKT1506-21011A1
Resolution: 1920 (H) × 1080 (V)
Display mode: Normalyblack
Interface: 20455-030E-76 (IPEX)
Working voltage: 3.0-3.6V
Boundary dimension: 359.5mm (W) × 224.37mm(H) × 3.3mm(D)
Window: 344.16mm (H) × 193.59 mm (V)
Perspective: Full view
Working temperature: 0 ℃~50 ℃
Storage temperature: -20 ℃~60 ℃
Brightness: 200-220cd/㎡

Download

10.1-inch TFT display screen

Product model: CNKT1010-18227A1

Resolution: 800RGB (H) × 1280 (V)

Display mode: full transparency

Interface: 4LanesMIPI

Working voltage: 3.3-3.6V

Boundary dimension: 143.0 (W) × 228.6 (H) × 2.6 (T) mm

Window: 135.36 × 216.58mm

Perspective: Full view

Working temperature: -10 ℃~50 ℃

Storage temperature: -20 ℃~60 ℃

Download

8.0 inch TFT display screen

Product model: CNKT0800-19306A2

Resolution: 800RGB (H) × 1280 (V)

Display mode: full transparency

Display color: 16.7M

Interface: MIPI (4Lane)

Working voltage: 3.3-3.6V

Module size: 114.60 (W) × 184.10 (H) × 2.5 (T) mm

Window: 107.64 × 172.22mm

Perspective: Full view

Working temperature: -10 ℃~50 ℃

Storage temperature: -20 ℃~60 ℃

Driver chip: ILI9881C

Brightness: 350cd/㎡

Download

8.0 inch TFT display screen

Product model: CNKT0800-19129A3

Resolution: 800x (RGB) x1280

Display mode: full transparency

Display color: 16.7M

Interface: MIPI

Working voltage: 2.7-3.6V

Perspective: Full view

Working temperature: -10 ℃~50 ℃

Storage temperature: -20 ℃~60 ℃

External dimensions: 131.2 (W) x 202.65 (L) x 4.51 (T)

Driver chip: JD9367AA

Download

7.0 inch TFT display screen

Product model: CNKT0700-21375A1

Resolution: 280 (H) × 1424 (V)

Panel type: IPS

Display mode: full transparency

Display color: 262K

Interface: MIPI

Working voltage: 2.7-3.6V

Perspective: Full view

Working temperature: -20 ℃~70 ℃

Storage temperature: -30 ℃~80 ℃

External dimensions: 181.47x38.2x3.4mm

Driver chip: OTA7290B

Download

5.5 inch TFT display screen

Product model: CNKT0550-22047A1

Resolution: 720 (H) × 1280 (V)

Panel type: IPS

Display mode: full transparency

Display color: 262K

Interface: MIPI

Working voltage: 4.8V

Perspective: Full view

Working temperature: -10 ℃~60 ℃

Storage temperature: -20 ℃~70 ℃

External dimensions: 70.14 * 128 * 1.68mm

Driver chip: ILI9881C or compatible

Download

5.0 inch TFT display screen

Product model: CNKT0500-18023A1

Resolution: 800RGB (H) × 480 (V)

Display mode: NormalyWhite

Display color: 16.7M

Interface: IPS, 24-bitTTL

Working voltage: 5V

Perspective: 6:00

Working temperature: -20 ℃~70 ℃

Storage temperature: -30 ℃~80 ℃

Boundary dimension: 120.70 (W) × 75.80 (H) × 3.05 (T)

Window: 108.00 (H) x64.8 (V)

Driver chips: ILI5960, ILI6122

Download

4.3 inch TFT display screen

Product model: CNKT0430-19173A3

Resolution: 480RGB (H) × 272 (V)

Display mode: full transparency

Display color: 260K

Interface: FPC

Working voltage: 3.3V

Perspective: 6:00

Working temperature: -20 ℃~70 ℃

Storage temperature: -30 ℃~80 ℃

Boundary dimension: 105.40x67.10x2.9mm

Window: 95.04x53.856mm

Driver chip: ST7282E

Download

4-inch TFT display screen

Product model: CNKT0400-20113A1

Resolution: 480RGB (H) × 480 (V)

Display mode: negative display, full transparency

Display color: 65K

Interface: 24bitRGBInterface

Working voltage: 3.3V

Perspective: Full view

Working temperature: -20 ℃~70 ℃

Storage temperature: -30 ℃~80 ℃

External dimensions: 84.6 (W) x 84.6 (L) x 3.62 (T) mm

Driver chip: ST7701S

Download

3.9 inch TFT display screen

Product model: CNKT0397-21299A1

Resolution: 480 (RGB) * 800

Display mode: full transparency

Display color: 262K

Panel type: IPS

Interface: 2LaneMIPI

External dimensions: 57.14 * 96.85 * 2.2mm

Working temperature: -20 ℃~70 ℃

Storage temperature: -30 ℃~80 ℃

Perspective: Full view

Driver chip: ST7701 or compatible

Download

3.5 inch TFT display screen

Product model: CNKT0350-21466A1

Resolution: 240RGB (H) × 480 (V)

Display mode: TN, transparent

Display color: 262K

Interface: MCU8Bit

Working voltage: 2.6-3.3V

External dimensions: 54.50 * 83.00 * 2.15mm

Working temperature: -10 ℃~60 ℃

Storage temperature: -20 ℃~70 ℃

Perspective: 12:00

Driver chip: ILI9488

Download

2.4 inch TFT display screen

Product model: CNKT0240-20037A1

branchDifferentiationRate: 240 × three hundred and twenty

Display mode: TN, full transparency

Display color: 65K

meetPort: serial port

Working voltage: 2.8V

Boundary dimension: 42.72 (W) × 60.26 (H) × 3.35 (T)

Working temperature: -20 ℃~70 ℃

Storage temperature: -30 ℃~80 ℃

regardCorner: 12:00

Driver chip: ST7789V2 or compatible

Download
